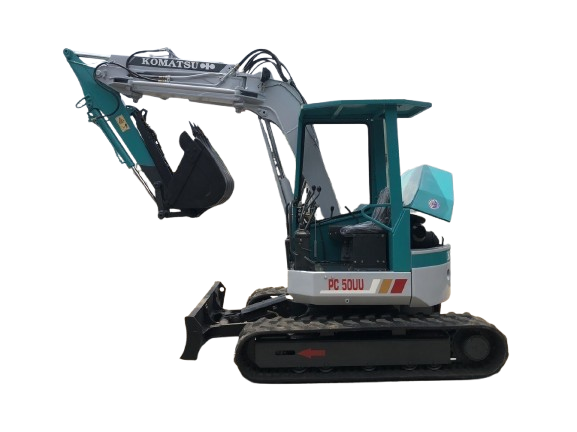

Main specifications of Komatsu PC50UU:
- Weight: About 5,100 kg.
- Bucket capacity: 0.22 m³.
- Dimensions:
- Overall length: 5335 mm.
- Turn radius: 1000 mm.
- Side track width: 400 mm.
- Track length: 2470 mm.
- Overall height: 2550 mm.
- Overall width: 2000 mm.
- Engine: 4D88E, 29.4 kW (40 PS) at 2400 rpm.
- Hydraulic system:
- Safety valve pressure: 21.6 MPa.
- Hydraulic pump type: GPx1, PPPx2.
- Features:
- Grade climbing ability: 30 degrees.
- Bucket digging force: 34.3 kN.
- Maximum digging depth: 4000 mm.
- Maximum digging reach: 5660 mm.
- Travel speed: 2.4/4.0 km/h.
- Rotation speed: 11.0 rpm.
- Fuel tank capacity: 80 liters.
- Hydraulic oil tank capacity: 64 liters.
Advantages of Komatsu PC50UU:
- Compact size: Easy to move and work in narrow spaces.
- Flexible: Good rotation and movement ability, suitable for many types of terrain.
- High performance: Powerful engine, stable hydraulic system.
- High durability: Komatsu brand is famous for its durability and long life.
- Easy maintenance: Common spare parts, easy to find.
- Application:
- Construction of civil works, traffic works.
- Leveling, digging foundations, digging holes.
- Working in narrow, hard-to-reach areas.
- Demolishing small works.
Note:
- When using, it is necessary to comply with the manufacturer’s safety procedures.
- Regular maintenance to ensure stable operation and prolong the life of the machine.
- Choose a reputable supplier when purchasing machines or spare parts.
